Vertical six-spindle drilling, tapping and milling compound machine
Product Function
1.The machining efficiency of one machine instead of three CNC changing time in the machining process.
2.One-time clamping, can place 8-12 workpiece, complete drilling, tapping, milling process, heavy-duty cutting
3.Servo tapping
4.Milling Plane、Interal and external arc milling
5.Circular drilling and tapping
Product Structure
• High rigidity structure, best stability
• Suitable for medium and large quantities of copper, zinc alloy, aluminum alloy, stainless steel parts processing
• High Quality Mihanna Castings, the structure of finite element analysis, to achieve the best stability
• X, Y, Z axis are used on the Taiwan HIWIN precision class large diameter screw Rod, and to be appropriately pre-pressed, the tail uses pre-pull Shooting
• The three axles are all made of super-heavy rail with high precision and high load-bearing
Main technical parameters
| Item name | Unit | Model Number | ||
| ZSK540 | ZSK560 | ZSK580 | ||
| Numerical Control System | Matching | KY CNS System | KY CNS System | KY CNS System |
|
Hydraulic Machinery |
Standard fitting | CML | CML | CML |
|
Spindle number |
--4-8 | 4 | 6 | 8 |
| Spindle taper | #4号 | MT4 | MT4 | MT4 |
|
Spindle center distance |
Mm120 | 120 | 120 | 120 |
| Extendable length of spindle | Mm100 | 100 | 100 | 100 |
|
Diameter of spindle sleeve |
Mm105 | φ105 | φ105 | φ105 |
| Spindle speed | r/min1-3000 | 1-3000 | 1-3000 | 1-3000 |
| X / Y / Z feed rate | 3000MM | 3000MM | 3000MM | 3000MM |
| Spindle stroke (X axis) | 600 | 600 | 600 | 600(Customizable) |
| Maximum drilling diameter (Copper Parts) | 50MM | 50MM | 50MM | 50MM |
| Table sizes | 400*500 | 400*500 | 400*500 | 400*500 |
| Table Travel (Y axis) | 500MM | 500mm | 500mm | 500mm |
|
Middle drag stroke (Z axis) |
500MM | 500mm | 500mm | 500mm |
| Distance from spindle end to table end | 150-650Mm | 150-650MM | 150-650mm | 150-650mm |
| Machine size | 2000*2000*2500 | 2000*2000*2500 | 2000*2000*2500 | 2000*2500*2700 |
| Machine Weight | 4000KG | 4150KG | 4250KG | 4600KG |

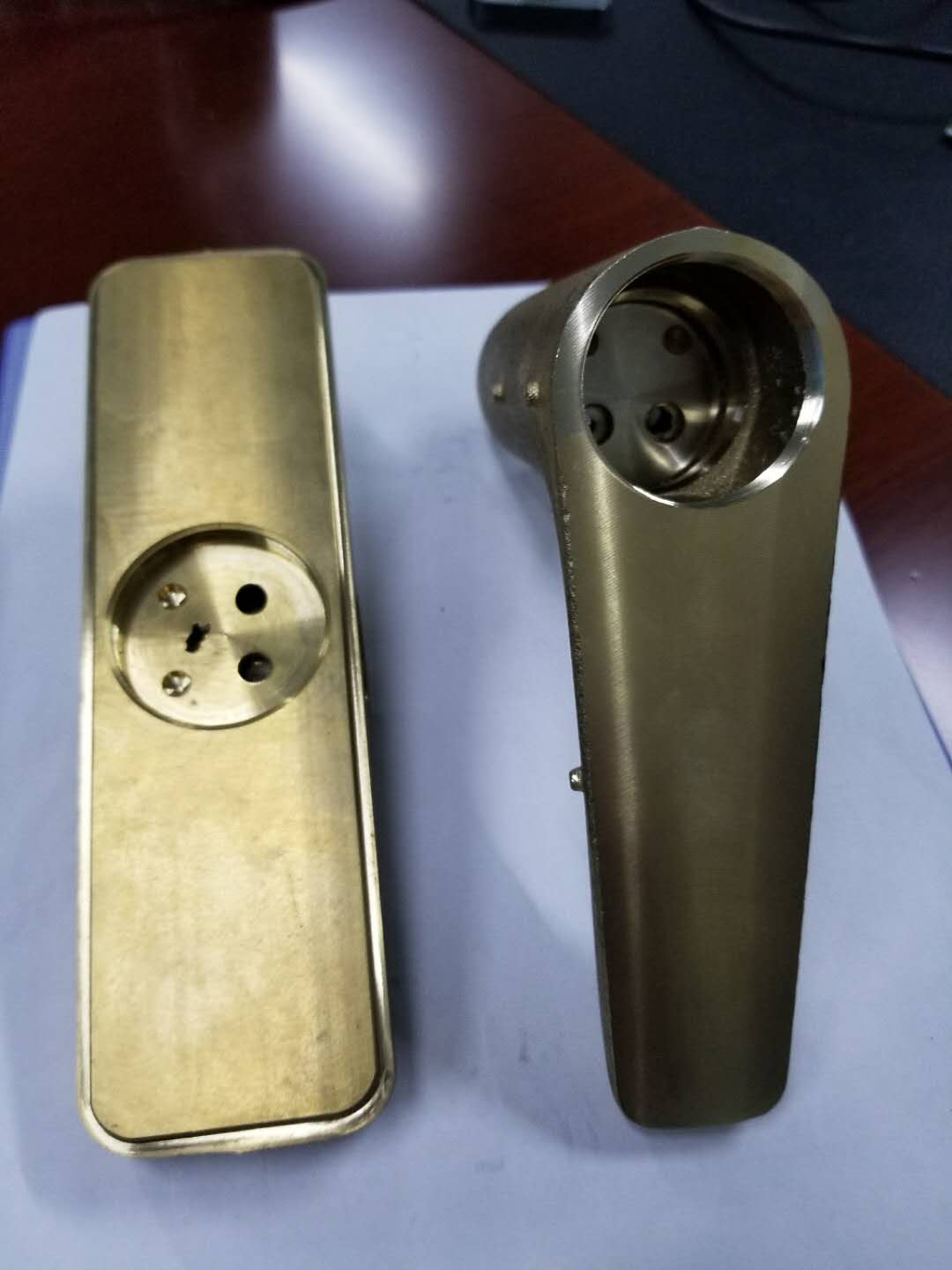

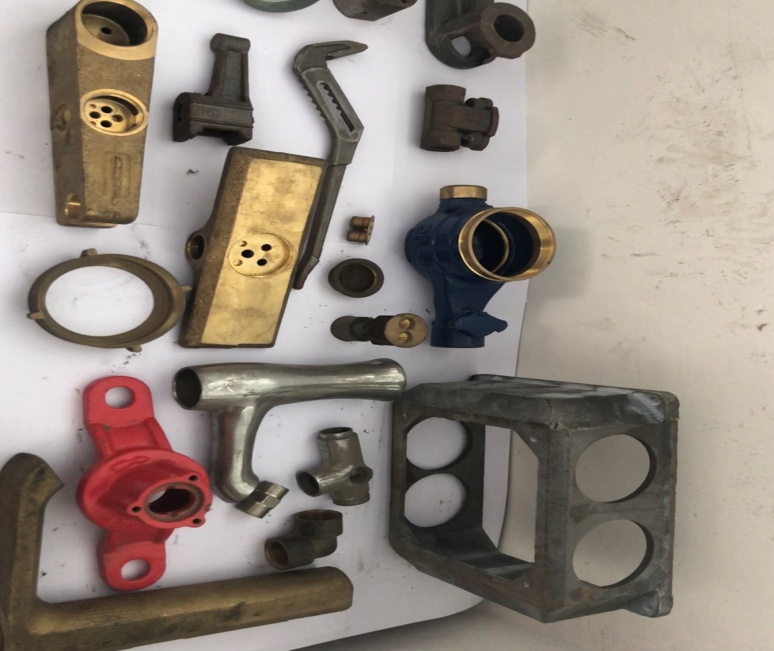

Display of processed products
